Lasers
Rotary lasers for all your jobsite needs
Machine control, grade checking and construction lasers
Machine control, grade checking and construction lasers
You need accuracy.
Rotary construction lasers deliver.
Rotary lasers, sometimes called rotating lasers, are some of the most useful, flexible tools on a jobsite. They increase accuracy in building construction, earthmoving machine control, grade checking, and leveling applications.
Which rotary laser is right for your job?
Topcon’s RL family of rotary lasers are self-leveling, feature battery lives of up to 100 hours, and carry an IP-66 rating for rugged use and water resistance.
Choosing the right laser for your application involves considerations such as range, types of slopes, rotation speeds, and other factors. The following chart outlines key specification differences in the RL family of rotary lasers.
Rotary lasers are perfect for:
Grading
Asphalt paving
Concrete paving
Curb and gutter
Excavation
Site surveying
Underground utility
Field surveying
Layout
Floor flatness and levelness
And more
RL-200
1,100 (3,600)
Range m (ft)
300/600/900
Rotation speed (rpm)
Dual
Slope
LS-Series
Remote control
3R
Laser Class
Long range and
steep slopes
Ideal uses
RL-H5 Series
400/800 (1,300/2,600)
Range m (ft)
600
Rotation speed (rpm)
No
Slope
LS-Series
Remote control
3R
Laser Class
Horizontal and budget
friendly
Ideal uses
RL-HV Series
800 (2,600)
Range m (ft)
300/600
Rotation speed (rpm)
Single/Dual
Slope
Laser Manager app
Remote control
1
Laser Class
Versatile, horizontal,
vertical and slope
Ideal uses
NOTE: Due to interstate and international shipping constraints, Topcon products do not include alkaline batteries. Types and numbers of alkaline batteries required for each product are clearly indicated as part of the product package and should be purchased locally.
What you need to stay on grade

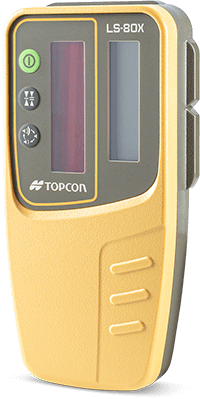

The LS-80 provides exactly the information needed at the leveling pole, including alerts involving heights, out-of-range locations, and low batteries. And it’s jobsite-ready – rugged, water and dust resistant, and usable with most conventional rotary lasers.
This accessory helps single crew members quickly and accurately finish any job from sub-base leveling to concrete finishing.
Increase your Mobility with Laser Manager
The free Laser Manager mobile app puts a display and common laser functions directly on your mobile device, meaning less time walking to the laser or climbing in and out of ditches and tight spots. This increases convenience and safety. Laser Manager also reduces the number of remote controls you need to carry.
Laser Manager lets you use your mobile device to:
- Remotely see and set position and slope
- Adjust rotation speed and working mode
- Self-level and calibrate the laser
