Robotic Total Stations
Lay out sites faster and control machines with robotic total stations
Be a one-person surveying and layout team or execute machine control jobs
Be a one-person surveying and layout team or execute machine control jobs
Why use a robotic total station?
Robotic total stations help measure distances and angles for a variety of projects, such as construction, mapping, engineering, and land surveying. In addition to measuring, these versatile instruments can also interact with machine control platforms to provide precision 3D operation, even when satellite signals are not an option.
Surveying uses
Robotic total stations are often used by “single-person surveying teams” to create three-dimensional maps of project areas, designs, and volume calculations; to verify as-built conditions or property boundaries; and to check grade.
Contractor layout and measuring
Robotic total stations can be used to stake out jobsites, lay out points on concrete decks, check elevations, calculate building dimensions, and to ensure that equipment and fixtures are installed in the correct locations.
Construction verification
GTL-Series instruments also include a built-in scanner that can help VDC teams generate point clouds to verify construction quality in comparison to BIM model dimensions.
Civil engineering uses
Civil engineering projects often use robotic total stations to measure angles and lengths of bridges, buildings, roads, railroad tracks, bodies of water, and critical infrastructure. MS-Series instruments can also be used for structural health, displacement and deformation monitoring.
Machine control uses
Total station machine control or LPS (local positioning systems) can be used with 360-degree prisms mounted to heavy construction equipment when precise location and height information are critical and satellite positioning methods are not ideal. Heavy tree cover, tunnels or other jobsite conditions where the sky is obstructed are all popular scenarios for LPS use.
Stay connected via line of sight and GNSS/GPS
Hybrid Positioning™ technology combines GNSS (sometimes called GPS) positioning and optical robotic measurements on one rover pole. Finish projects quickly and accurately by easily switching between prism- and satellite-based measurement modes when you lose line-of-sight or satellite reception, or as you encounter other jobsite challenges.
Which robotic total station is right for your job?
Topcon’s GT-Series, LN-Series, GTL-Series and MS-Series total stations feature powerful electronic distance measuring devices (EDMs), strong battery lives, advanced prism tracking, Bluetooth and Wi-Fi communication modes, and ample memory. They are also designed for rugged use and water resistance.
Choosing the right equipment for your application involves considerations such as range, accuracy requirements, Hybrid Positioning capabilities, and other factors. The following chart outlines key specification differences in Topcon’s robotic total station lineup.
GT-1200/600
Site and field survey, layout, grade checking, staking, machine control
Ideal uses
GT-1200: 1”, 2”, 3”
GT-600: 2”, 3”, 5”
Angle accuracy
GT-1200: 5000 m
GT-600: 4500 m
Distance - prism
GT-1200: 1000 m
GT-600: 800 m
Distance - non-prism
(reflectorless)
Yes
Hybrid positioning
No
Self-leveling single button setup
Yes
RC-5A compatibility
IP65
Dust and waterproof rating
Optional
Laser plummet
GTL-1200
Construction verification, scanning, site and field survey, layout, staking
Ideal uses
2”, 3”
Angle accuracy
6000 m
Distance - prism
1000 m
Distance - non-prism
(reflectorless)
Yes
Hybrid positioning
No
Self-leveling single button setup
No
RC-5A compatibility
IP65
Dust and waterproof rating
Optional
Laser plummet
MS AXII
Monitoring, highest accuracy site and field survey, staking, lay out
Ideal uses
0.5”, 1”
Angular accuracy
3500 m
Distance - prism
100-400 m
Reflective sheet: 200 m
Distance - non-prism
(reflectorless)
No
Hybrid positioning
No
Self-leveling single button setup
Yes
RC-5A compatibility
IP65
Dust and waterproof rating
Optional
Laser plummet
PS-200
Machine control
Ideal uses
1”, 3”
Angular accuracy
6000 m
Distance - prism
1000 m
Distance - non-prism
(reflectorless)
No
Hybrid positioning
No
Self-leveling single button setup
Yes
RC-5A compatibility
IP65
Dust and waterproof rating
Optional
Laser plummet
GT-600V
Building contractor layout and field measurements
Ideal uses
3”, 5”
Angle accuracy
2000 m
Distance - prism
500 m
Distance - non-prism
(reflectorless)
Yes
Hybrid positioning
No
Self-leveling single button setup
Yes
RC-5A compatibility
IP65
Dust and waterproof rating
Standard
Laser plummet
LN-150
Easy setup and cost-effective layout, grade checking, machine control
Ideal uses
5"
Angular accuracy
130 m
Distance - prism
---
Distance - non-prism
(reflectorless)
Yes
Hybrid positioning
Yes
Self-leveling single button setup
Yes
RC-5A compatibility
IP65
Dust and waterproof rating
Standard
Laser plummet

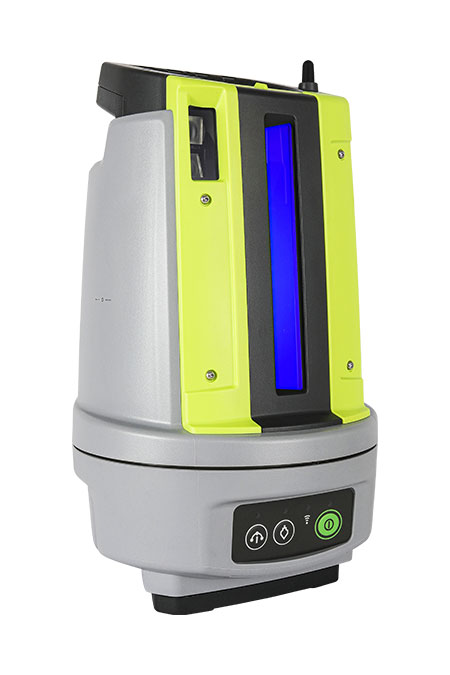

LN-50
Easy setup and cost-effective layout for building contractors
Ideal uses
5"
Angular accuracy
50 m
Distance - prism
---
Distance - non-prism
(reflectorless)
Yes
Hybrid positioning
Yes
Self-leveling single button setup
Yes
RC-5A compatibility
IP65
Dust and waterproof rating
Standard
Laser plummet
Lock onto your prism quickly and easily
If you have worked on a busy jobsite, you know obstructions can sometimes break the lock between your total station and a pole-mounted prism. The process of reacquiring this lock can cause delays and downtime.
The RC-5A accessory provides the fastest and simplest way to relock the connection to the prism when line of sight has been interrupted. Simply tap the field software once, and the robotic total station will detect the fan-shaped laser beam emitted by the RC-5A and relock within seconds.
- 300-meter, single-tap prism acquisition
- Extends instrument communication to 600-meters using Longlink™
- Ruggedized IP-55 rating
- 40-hour battery life
